Gecolen RTLS Anchor is a Bluetooth tracking device that collects signals from RTLS tags, and processes the data. Our Bluetooth location device not only provides high-precision indoor positioning services, but also serves as a Bluetooth AoA gateway to access all kinds of Bluetooth IoT sensor data.

Gecolen Bluetooth location tracker anchor comes in three types: Classic Type BA3000-t, Pro Type BA3000-p, and Waterproof Type BA3000-w. Explore here to learn what makes them stand out

Gecolen RTLS Anchor

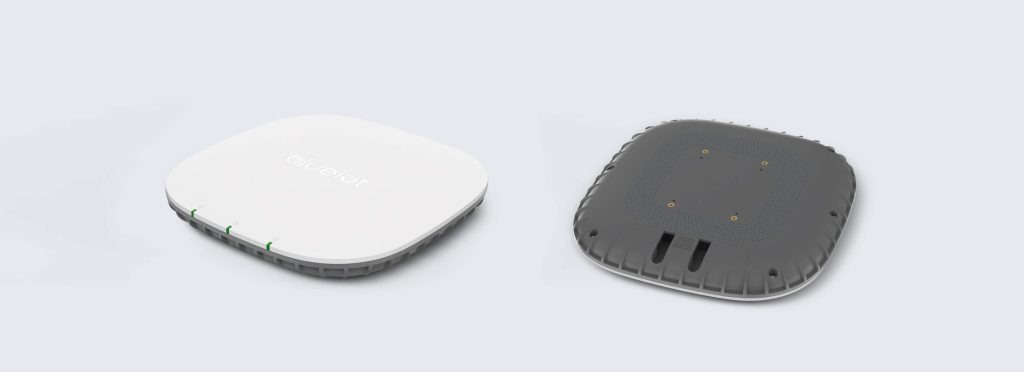

Classic Type GE-BA3000-t

gecolen-anchor-1

Features:

  1. Positioning accuracy up to 0.1~1m, sub-meter high precision positioning
  2. Support dual network port serial link, wiring savings deployment
  3. The terminal system is compatible with iOS/Android, and has strong application ductility
  4. Support Bluetooth IoT data back transmission, can report tag information data

Technical Specification

Positioning TechnologyBluetooth AoA, accuracy 0.1 ~ 1.0m
Dimension< 220mm×220mm×32mm
Network Interface10/100M RJ45
Interface FormOne in and one out, dual port serial link
Operating Temperature-20 ~ 70℃
Storage Temperature-40 ~ 85℃

About RTLS

Overview

Hardware

Software

Pro Type GE-BA3000-p

pro-type-ge-ba3000-p-rtls-anchor-gecolen.com

Features:

  1. Positioning accuracy up to 0.1~1m, sub-meter high precision positioning
  2. Support dual network port serial link, wiring savings deployment
  3. The terminal system is compatible with iOS/Android, and has strong application ductility
  4. IP68 waterproof grade, to meet the industrial wet environment

Technical Specification

Positioning TechnologyBluetooth AoA, accuracy 0.1-2m
Dimension< 330mm×330mm×53mm
Network Interface10/100/1000M (Optional) RJ45
Interface FormAviation plug, daisy chain in and out
Operating Temperature-40 ~ 80℃
Storage Temperature-40 ~ 85℃

Waterproof Type GE-BA3000-w

waterproof-type-ge-ba3000-w-rtls-anchor-gecolen.com

Features:

  1. Positioning accuracy up to 0.1~1m, sub-meter high precision positioning
  2. Support dual network port serial link, wiring savings deployment
  3. The terminal system is compatible with iOS/Android, supports APP/Mini apps, and has strong application ductility
  4. IP68 waterproof grade, to meet the industrial wet environment

Technical Specification

Positioning TechnologyBluetooth AoA, accuracy 0.1 ~ 1.0m
Dimension< 220mm×220mm×40mm
Network Interface10/100M RJ45
Interface FormAviation plug, daisy chain in and out, serial link
Operating Temperature-20℃ ~ 70℃
Storage Temperature-40 ~ 85℃
